風管不得采用S型插條、C型直角插條及立聯合角插條的連接方式?？諝鉂崈舻燃墳?～5級的風管不得采用按扣式咬口。

　　The wind pipe shall not be connected with S type cutting, C type right angle cutting and vertical joint angle cutting. The air cleanliness class is 1 to 5 level wind pipe shall not use stud bite.

　　凈化空調系統風管的法蘭鉚釘間距應小于100 mm，空氣潔凈等級為1～5的風管法蘭鉚釘間距應小于65mm。

　　The flange rivet spacing of the duct of the air conditioning system shall be less than 100 mm, and the distance between the rivets of the air duct flange of air cleaning grade 1~5 shall be less than 65mm.

　　風管內不得設置加固框或加固筋。

　　Reinforcing frame or reinforcing rib shall not be installed in air duct.

　　風管加工前應采用清洗液去除板材表面油污及積塵，清洗液應采用對板材表面無損害、干燥后不產生粉塵，且對人體無危害的中性清潔劑。

　　The cleaning liquid should be used to remove the oil stain and dust accumulation on the surface of the pipe before the duct is processed. The cleaning liquid shall be a neutral detergent that does not damage the surface of the sheet, does not produce dust after drying and has no harm to the human body.

　　通風管道制作完畢應使用清洗液清洗，清洗后經白綢布擦拭檢查達到要求后，酚醛板，應及時封口。

　　Ventilation pipe production should be used after cleaning fluid cleaning, cleaning after the white cloth wipe check to meet the requirements, the phenolic plate, should be promptly sealed.

　　彩色涂層鋼板風管的內壁應光滑;板材加工時不得損壞涂層，被損壞的部位應涂環氧樹脂。

　　The inner wall of the color coated steel pipe shall be smooth, and the sheet shall not be damaged during processing, and the damaged parts shall be coated with epoxy resin.

　　風管的咬口縫、鉚接縫以及法蘭翻邊四角縫隙處，應按設計及潔凈等級要求，采用涂密封膠或其他密封措施堵嚴。密封材料宜采用異丁基橡膠、氯丁橡膠、變性硅膠等為基材的材料。風管板材連接縫的密封面應設在風管壁的正壓側。

　　The four corners of the wind pipe, such as the bite joint, the riveted joint and the flange flanging, shall be sealed by the coating sealant or other sealing measures according to the design and cleanliness grade requirements. Sealing material should adopt isobutyl rubber, chloroprene rubber, modified silica gel as the base material. The sealing surface of the joint of the wind pipe plate shall be located on the positive pressure side of the air duct wall.

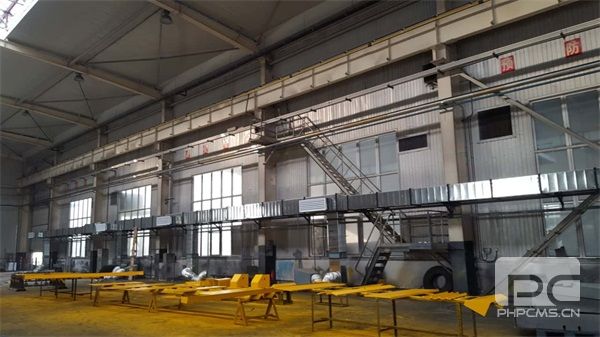

　　風管制作場所應相對封閉，制作場地宜鋪設不易產生灰塵的軟性材料

　　The wind pipe production site should be relatively closed, and the site should be paved with soft materials which are not easy to generate dust

　　風管應減少縱向接縫，玻璃鋼通風管道，且不得有橫向接縫。

　　The duct shall be longitudinally jointed, fiberglass ventilated, and shall not have transverse joints.

　　風管加工連接螺栓、螺母、墊圈和鉚釘應采用鍍鋅或其他防腐措施，不得使用抽芯鉚釘。

　　Pipe connections, bolts, nuts, washers and rivets shall be galvanized or other anticorrosive measures, and no core rivets shall be used.
